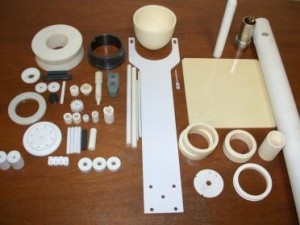

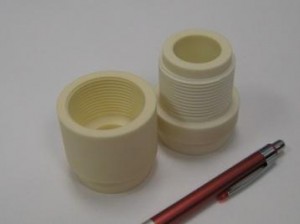

We offer a variety of ceramic fabrication methods for molding and grinding. Molding techniques include extrusion, slip casting, isostatic pressing, hydraulic pressing and sintering. Grinding methods include green machining, precision diamond machining, lapping and polishing. Our precision post-sinter machining allows us to produce complex geometries with precise tolerances (+/- .0003”). We are familiar and experienced with practically all fine ceramics. We produce all popular ceramic shapes: boats, crucibles, plated, rods, tubing, rings, balls, bolts and nuts, etc.
| Fabrication Methods | Pressing and sintering Injection Molding and sintering Extrusion and sintering Slip Casting and sintering Green body machining and sintering High Precision Grinding and polishing Natural gas or electric kilns |
| Shapes | Boats and crucibles Pins and rods Tubes and pipes Rings and washers Balls and beads Bolts and nuts Intricate and complex parts |
| Materials | Alumina (Al2O3: 96% and 99.8%) Translucent Polycrystalline Alumina Sapphire Spinel (MgAl2O4: Magnesium Aluminate) Macor (Corning Glass-Ceramic with approximately 46% SiO2, 17% MgO, 16% Al2O3, 10% K2O, 7% B2O3 and 4% F) Sialon (Si2ON2: Silicon Aluminum Oxynitride) Nitrides: AIN, Si3N4 Carbides: B4C, TiC, SiC Borides: TiB2, ZrB2 YSZ and MSZ (Yttria and Magnesia Stabilized ZrO2) ZTA (Al2O3/ZrO2) Cordierite (Mg, Fe)2Al4Si5O18; Magnesium Aluminosilicate) Mullite (Al6Si2O13: Aluminosilicate) Mica Composite Steatite (Mg3Si4O10(OH)2: Magnesium Silicate) Forsterite (Mg2SiO4: Magnesium Silicate) Diamond, Graphite, C-C Composite |
Please click for a PDF copy of the brochures, Ceramic Fabrication .
